With lumens starting at 12, 450, the brightest just got up to 69 percent brighter than our previous generation. The OnX6 plus LED light bar integrates Baja Designs’ trademarked High Speed Spot reflector, the same one used by our Team Enlightened racers, to give you the guaranteed furthest-projecting LED Light Bar on the planet. We use Cree LEDs that last up to 50,000 hours and have a 5000K light temperature; this mimics natural daylight for better trail recognition and less eye fatigue. These light bars are completely weatherproof and have special battery management technology to save power.
In addition, the OnX6 plus LED light bar adopts industry standard sizing and is now compatible with aftermarket mounting systems. An industry-first, 30-day Satisfaction Guarantee and Limited Lifetime Warranty is included for the ultimate in purchase protection. Attach a high-power LED light bar to the front grille, hood, or roof of your off-road vehicle and see the night in a whole new way.
Note:
Please note that this light does NOT include a harness
Buy Harness Here 🚩:
➟ On/Off Wiring Harness - OnX6 (10"-20") / S8 (10"-30") / XL Sport/XL Pro - Universal

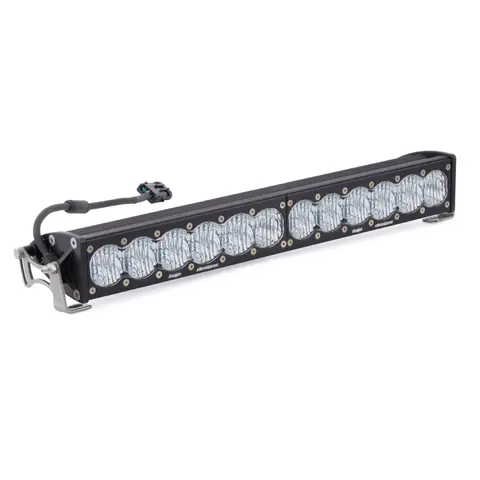

20'' Baja Designs OnX6+ Straight LED Light Bar - Universal (Wide Cornering)
Dimensions
Depth (in.) 4.29 Height (in.) 2.69 Length (in.) 20 Weight (lbs.) 7.85 Specifications
Amperage Rating (A) 16.6 (High); 12.0 (Low) Average Rated Life (hr.) 49,930 Beam Pattern Wide Cornering Bezel Material Billet Machined Aluminum Brightness (Lumens) 24,920 (High); 18,460 (Low) Description Straight; Wide Cornering; Clear Housing Color Black Housing Material Aircraft Grade Aluminum with Mil-Spec Hard Anodize Lens Color Clear Lens Material Hardcoated Polycarbonate Light Quantity 1 Lighting Modes High Beam/Low Beam Lighting Quantity 12 Lighting Technology LED Lighting Type Forward Projecting Mounting Hardware Description Mounting Brackets Mounting Hardware Included Yes Mounting Hardware Material Stainless Steel Overvoltage Protection Built-In Product Type OnX6+ 20 Inch LED Light Bar Universal or Specific Universal Wattage (W) 216 (High); 160 (Low) Wiring Harness Description Hi-Low Dongle Wiring Harness Included No Standards & Compliance
Standards/Compliance (Durability) Exceeds MIL-STD810G (Mil-Spec Testing) Standards/Compliance (Impact Resistance) IK10 Compliant (Mechanical Impact Testing) Standards/Compliance (Water Resistance) IP69K (Waterproof up to 9ft & Pressure Washable)
